Description

This Functional Area shall provide the functionality that is needed to support the implementation of some cooperative systems services that cannot be wholly assigned to parts of other Functional Areas.  The particular services that shall be supported by this Functional Area include the management of priority for Other Vehicles, the use by non-Public Transport Vehicles of any spare capacity in Bus Lanes, Vehicle access to sensitive geographic areas within the road network, special routes for Hazardous Goods Vehicles and Urban Loading Zones.

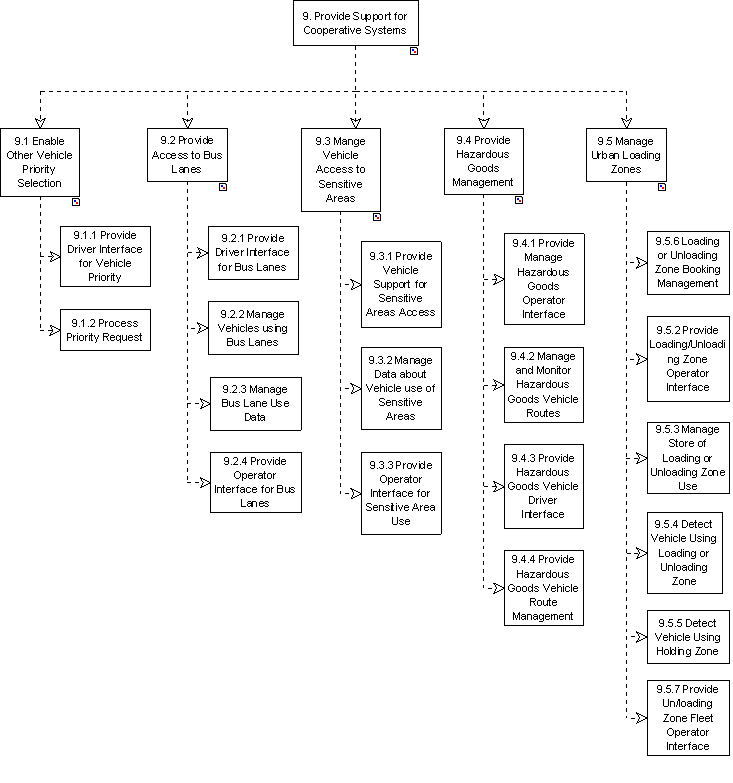

Component Functions

9. Provide Support for Cooperative Systems::9.1 Enable Other Vehicle Priority Selection

9. Provide Support for Cooperative Systems::9.2 Provide Access to Bus Lanes

9. Provide Support for Cooperative Systems::9.3 Mange Vehicle Access to Sensitive Areas

9. Provide Support for Cooperative Systems::9.4 Provide Hazardous Goods Management

9. Provide Support for Cooperative Systems::9.5 Manage Urban Loading Zones

Parent

System

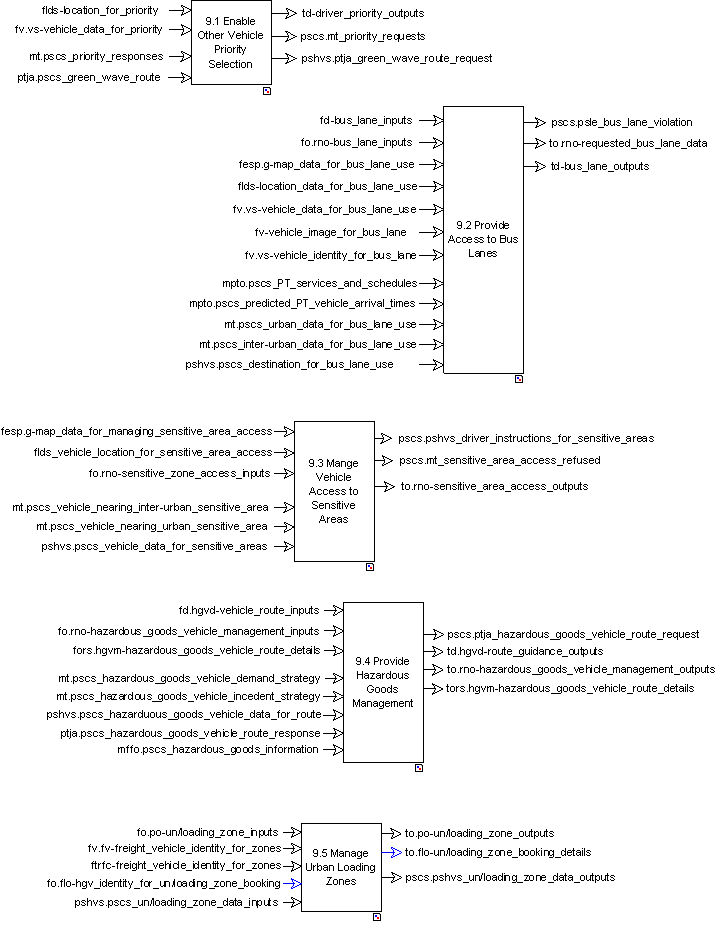

Input dataflows

fd-pscs_inputs

fesp-pscs_inputs

flds-pscs_inputs

fo-pscs_inputs

fors-pscs_inputs

ftrfc-pscs_inputs

fv-pscs_inputs

mpto.pscs_data_for_coop_sys

mt.pscs_data_for_coop_sys

pshvs.pscs_vehicle_data

ptja.pscs_green_wave_route

Output dataflows

pscs.mt_data_for_traffic_management

pscs.pshvs_data_for_vehicles

pscs.psle_bus_lane_violation

pscs.ptja_route_requests

td-pscs_outputs

to-pscs_outputs

tors-pscs_outputs
