High Level Function 9.4 Provide Hazardous Goods Management
 Diagram   Definition

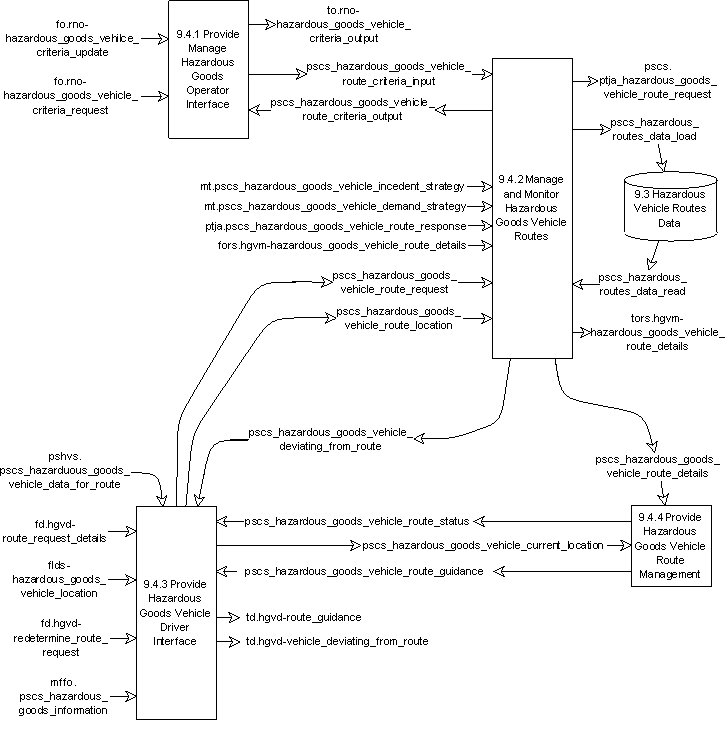

DFD 9.4 Provide Hazardous Goods Management

DFD 9.4 Provide Hazardous Goods Management

This is a DFD diagram which provides a description of the function in the ITS environment

Overview

This High-level Function shall enable the routes used by Freight Vehicles carrying Hazardous Goods to be planned and for the use of these routes to be monitored.  Drivers of these Vehicles shall be sent route guidance instructions so that they can follow the prepared route.

Diagrams

The Diagram(s) is(are) the Diagram(s) where you can find the function
  • The first diagram, if exists, is a DFD diagram which provides the context of the function
  • The second Diagram, if exists, is a Functional Tree which provides a hierarchical description of the function into subfunctions
  • DFD 9 Provide Support for Cooperative Systems
  • Functional Tree of Area 9
    		•

    Parent

    Component lower level functions

    Input logical dataflows

    Output logical dataflows

    User needs

    Number

    Description
