High Level Function 9.5 Manage Urban Loading Zones
 Diagram   Definition

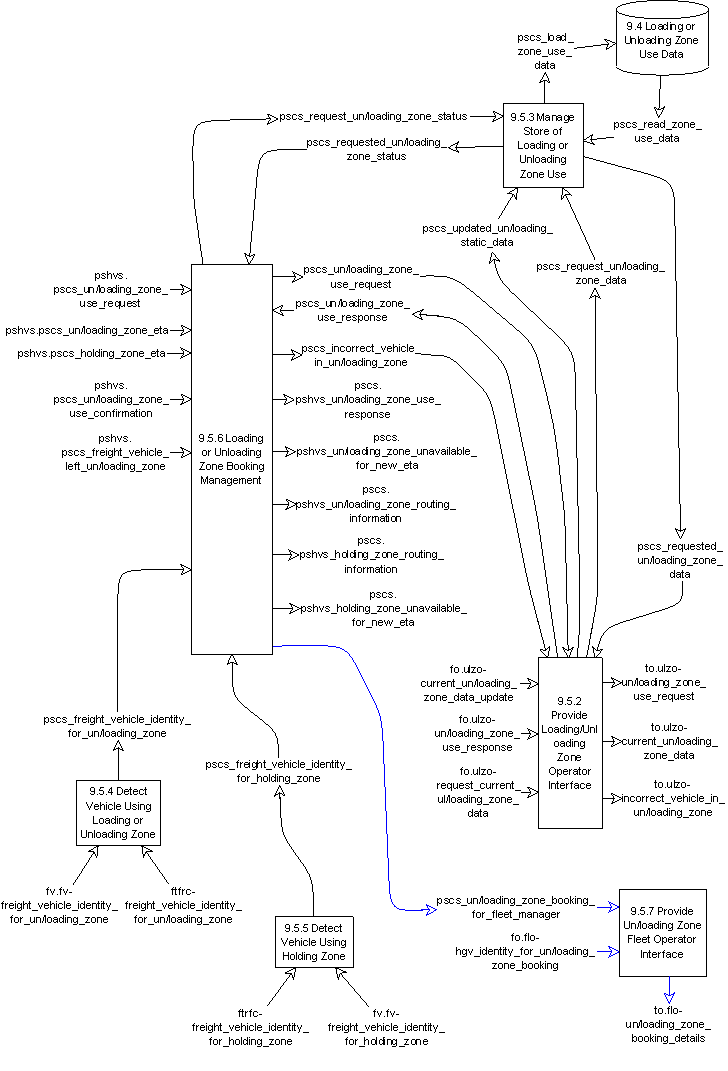

DFD 9.5 Manage Use of Loading or Unloading Zones

DFD 9.5 Manage Use of Loading or Unloading Zones

This is a DFD diagram which provides a description of the function in the ITS environment

Overview

This High-level Function shall provide functionality for the management of loading and unloading zones for Freight Vehicles in the urban road network.  It shall enable Freight Vehicle Drivers and Fleet Operators to book time in particular zones for their Vehicles to load or unload freight and to update those booking as their expected time of arrival changes.  If a particular requested zone is not available from the Freight Vehicle needs to use it, then the Driver shall be provided with instructions about the holding zone that is to be used as a place to park until the requested zone shall become available.  Overall management of the zones shall be made available to the Parking Operator.

Diagrams

The Diagram(s) is(are) the Diagram(s) where you can find the function
  • The first diagram, if exists, is a DFD diagram which provides the context of the function
  • The second Diagram, if exists, is a Functional Tree which provides a hierarchical description of the function into subfunctions
  • DFD 9 Provide Support for Cooperative Systems
  • Functional Tree of Area 9
    		•

    Parent

    Component lower level functions

    Input logical dataflows

    Output logical dataflows

    User needs

    Number

    Description
