High Level Function 9.2 Provide Access to Bus Lanes
 Diagram   Definition

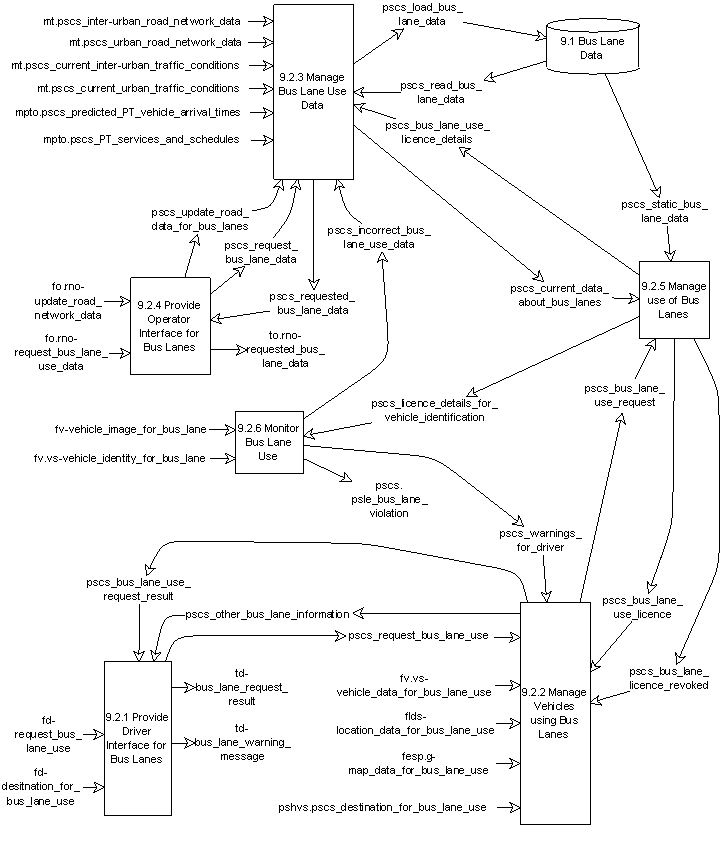

DFD 9.2 Provide Flexible Lane Allocation

DFD 9.2 Provide Flexible Lane Allocation

This is a DFD diagram which provides a description of the function in the ITS environment

Overview

This High-level Function shall provide functionality that enables flexible lane allocation.  It is aimed principally at Bus Lanes and shall enable them to be used by other Vehicles, when PT Vehicles are not using them.  Use of Bus Lanes by other Vehicles shall be granted through the allocation of a licence that applies to specific lanes and shall only be valid for a particular length of time.  It shall only be possible for a licence to be granted to use some of the Bus Lanes on the route to the required destination.  The use of the Bus Lanes shall be monitored and if other Vehicles are likely to impede the movement of PT Vehicles, they shall be requested to leave the Bus Lane at the end of the next section.  If other Vehicles are found to be using a Bus Lane without a licence, their details shall be passed to Law Enforcement functionality for subsequent prosecution.

Diagrams

The Diagram(s) is(are) the Diagram(s) where you can find the function
  • The first diagram, if exists, is a DFD diagram which provides the context of the function
  • The second Diagram, if exists, is a Functional Tree which provides a hierarchical description of the function into subfunctions
  • DFD 9 Provide Support for Cooperative Systems
  • Functional Tree of Area 9
    		•

    Parent

    Component lower level functions

    Input logical dataflows

    Output logical dataflows

    User needs

    Number

    Description
