High Level Function 8.3 Manage vehicle/driver/cargo/equipment
 Diagrams   Definition
DFD 8.3 Manage vehicle/driver/cargo/equipment
Functional tree 8.3

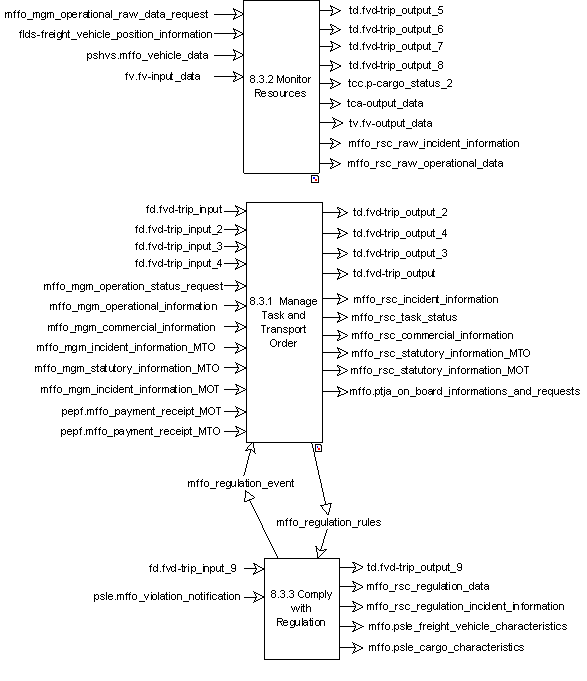

DFD 8.3 Manage vehicle/driver/cargo/equipment

This is a DFD diagram which provides a description of the function in the ITS environment

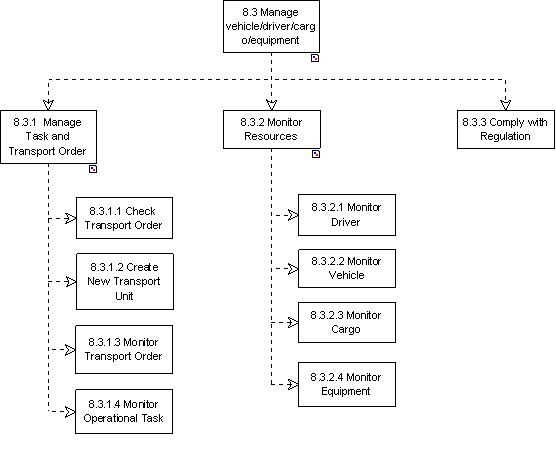

Functional tree 8.3

This is a DFD diagram which provides a description of the function in the ITS environment

Overview

This High-level Function shall be in charge to manage the trip (i.e. all tasks needed by driver/vehicle/equipment to perform cargo transport orders).  Fleet management of driver/vehicle/equipment (i.e. Maintenance, employment management) are excluded from that function.  They shall be found within 8.2.2.3 Manage Fleet Resources.  Consequently, it shall process all information coming directly from vehicle, driver, cargo and transport equipment (such as trailer) during trip.  This function shall also realise the interface with fleet manager during the trip: direct visibility for the fleet manager to trip data, and reception and processing of operational and commercial instructions from fleet manager.  The break down of this Function has been design accordingly to result provided by COMETA.  The Function shall consist of the following lower level Functions:

Diagrams

The Diagram(s) is(are) the Diagram(s) where you can find the function
  • The first diagram, if exists, is a DFD diagram which provides the context of the function
  • The second Diagram, if exists, is a Functional Tree which provides a hierarchical description of the function into subfunctions
  • DFD 8. Manage Freight and Fleet Operations
  • Functional tree 8.3
    •
  • Functional Tree of Area 8
    		•

    Parent

    Component lower level functions

    These three Functions split the on-board vehicle functionality between them. They communicate with each other, with other parts of the Manage Freight and Fleet Area and with the terminators using many Data Flows. These together with the Functions and the common Data Store are shown in the DFD for Function 8.3 - DFD 8.3.

    Input logical dataflows

    Output logical dataflows

    User needs

    Number

    Description
