High Level Function 8.3.2 Monitor Resources
 Diagram   Definition
DFD 8.3.2 Monitor Resources

DFD 8.3.2 Monitor Resources

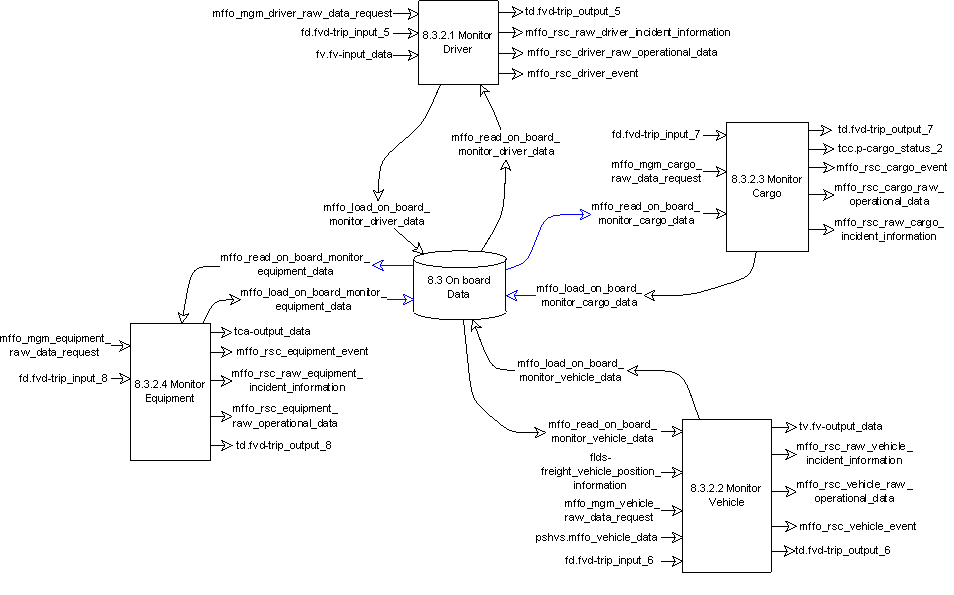

This is a DFD diagram which provides a description of the function in the ITS environment

Overview

This High-level Function shall collect, store, retrieve and manage all required information about trips resources: driver, vehicle, cargo and equipment. The Function shall consist of the following lower level Functions:

Diagrams

The Diagram(s) is(are) the Diagram(s) where you can find the function
  • The first diagram, if exists, is a DFD diagram which provides the context of the function
  • The second Diagram, if exists, is a Functional Tree which provides a hierarchical description of the function into subfunctions
  • DFD 8.3 Manage vehicle/driver/cargo/equipment
  • Functional tree 8.3
    		•

    Parent

    Component lower level functions

    These Functions provide facilities that enable Freight Vehicles, plus their Drivers, Cargoes and Freight Equipment to be monitored. These facilities only cover things that are specific to Freight Vehicles. The more general Vehicle monitoring facilities are provided by Functions in the Provide Advanced Driver Assistance Systems Area (5).

    The Functions do not communicate with each other, but with the On-board Database Data Store using two Data Flows. Each Function uses several other Data Flows to communications with other functionality in the Area, with other Areas and with the terminators. The Functions and Data Flows are contained in the DFD for Function 8.3.2 - DFD 8.3.2.
