Description

This Area shall provide functionality that enables the management of Freight and Fleet Operations. This shall control the use of freight vehicles and their transportation of goods. The use of other modes of freight transport shall also be supported. An interface to the Provide Safety and Emergency Facilities Area shall also be included to enable the provision of information about hazardous goods. Route planning for this and other types of goods shall be provided through the interface to the Provide Traveller Journey Assistance Area.

Component Functions

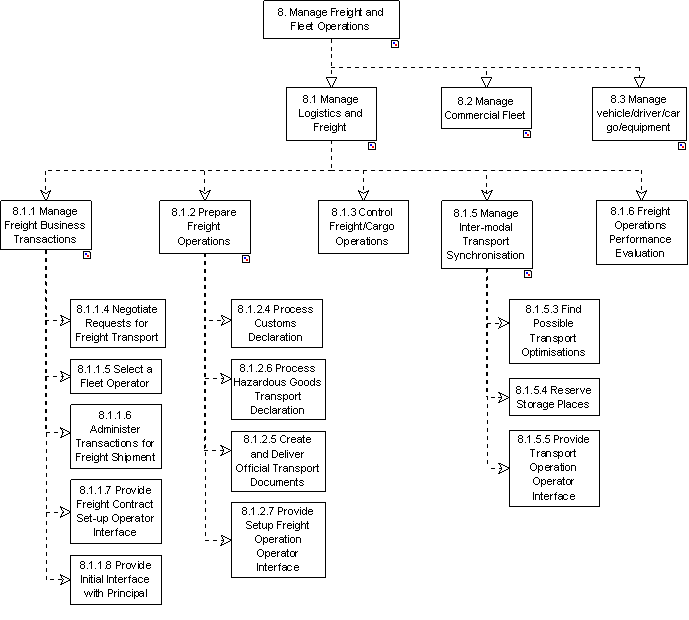

This Functional Area contains three High-level Functions. Between them they provide facilities for the management of freight and fleet operations in two situations.

The first two Functions (F 8.1 and F 8.2) provide functionality for a static freight and fleet operations centre. This centre can accept goods (freight) for transportation from one location to another. The route will be chosen and this may involve the use of modes other than that provided by road transport. If necessary, the goods can be stored at points along the route to enable the most optimum scheduling to be used. The second Function (F 8.2) can also manage the operation of a fleet of freight vehicles. This includes the scheduling and specification of drive duties and vehicle maintenance.

The third Function (F 8.3) provides functionality for the management of freight and fleet operations that are on-board a freight vehicle. It receives instructions about route plans and schedules and other information from the second Function (F 8.2). It also provides that Function with information about vehicle status, incidents and payments that have been made for things such as tolls.

8. Manage Freight and Fleet Operations::8.1 Manage Logistics and Freight

8. Manage Freight and Fleet Operations::8.2 Manage Commercial Fleet

8. Manage Freight and Fleet Operations::8.3 Manage vehicle/driver/cargo/equipment

Parent

System

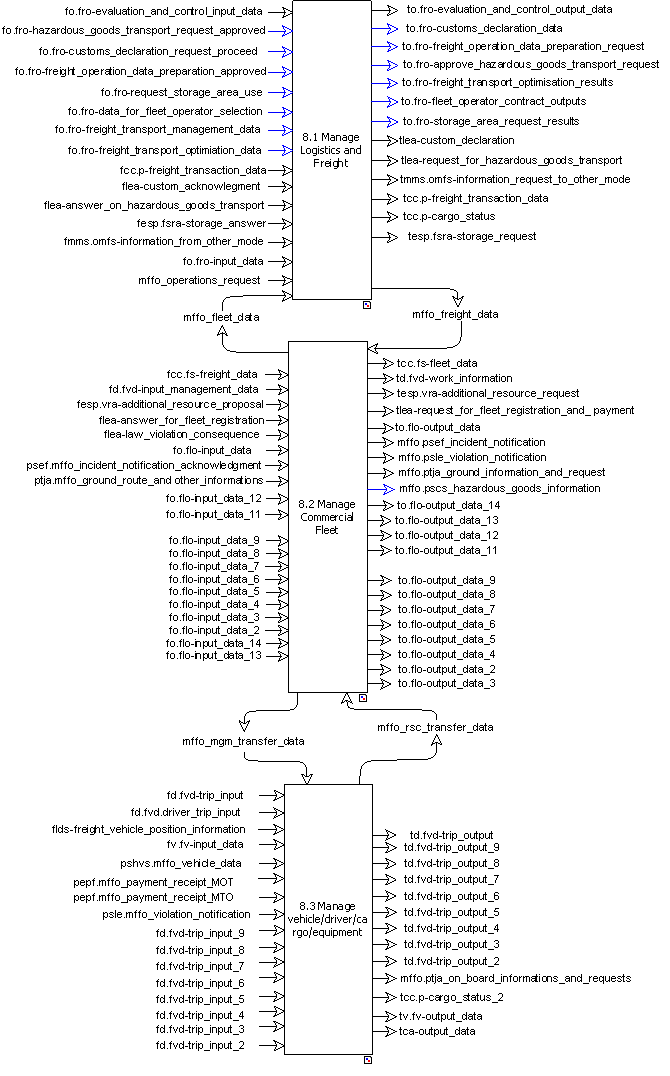

Input dataflows

fcc-mffo_inputs

fd-mffo_inputs

fesp-mffo_inputs

flds-mffo_inputs

flea-mffo_inputs

fmms-mffo_inputs

fo-mffo_inputs

From External Service Provider

From Freight Equipment

From Law Enforcement Agency

From Location Data Source

From Multi-Modal System

From Operator

fv-mffo_inputs

pepf.mffo_payment_receipt_MOT

pepf.mffo_payment_receipt_MTO

psef.mffo_incident_notification_acknowledgment

pshvs.mffo_vehicle_data

psle.mffo_violation_notification

ptja.mffo_route_and_other_information

Output dataflows

mffo.psef_incident_notification

mffo.psle_characteristics_and_transfer_data

mffo.ptja_information_and_requests

tcc-mffo_outputs

td-mffo_outputs

tesp-mffo_outputs

tlea-mffo_outputs

tmms-mffo_outputs

To External Service Provider

To Freight Equipment

To Law Enforcement Agency

To Multi-Modal System

To Operator

to-mffo_outputs

tv-mffo_outputs
