High Level Function 6.5.3 Trip Planning
 Diagram   Definition
DFD 6.5.3 Trip Planning

DFD 6.5.3 Trip Planning

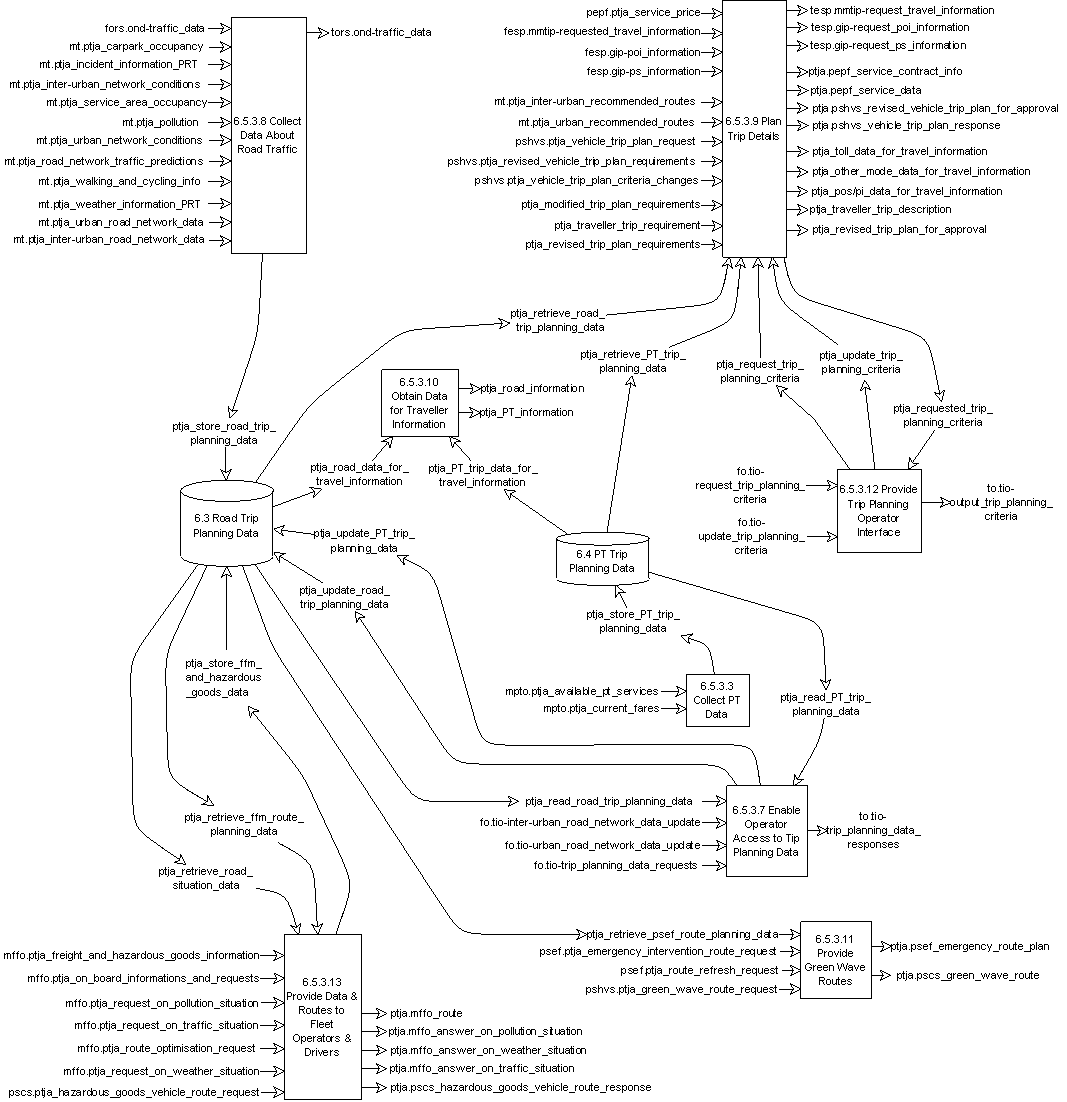

This is a DFD diagram which provides a description of the function in the ITS environment

Overview

This High-level Function shall plan the road based portions of trips.  It shall use road network and regular traffic information, plus weather and traffic perturbation information. If the trip is for HGV or freight vehicles the Function shall take into account route restrictions.  Any restrictions dictated by the cargo type (tunnels, residential areas, etc.) shall also be considered.  For emergency vehicles a detailed route and schedule shall be produced in the form of a 'green wave'.  Road trips for cyclists and pedestrians shall be produced by the Function using the road network data and related perturbations, but disregarding traffic incident information.

Diagrams

The Diagram(s) is(are) the Diagram(s) where you can find the function
  • The first diagram, if exists, is a DFD diagram which provides the context of the function
  • The second Diagram, if exists, is a Functional Tree which provides a hierarchical description of the function into subfunctions
  • DFD 6.5 Prepare Trip Plan
  • Functional Tree of Area 6
    		•

    Parent

    Component lower level functions

    Input logical dataflows

    Output logical dataflows

    User needs

    Number

    Description
