High Level Function 5.16 Provide Outputs to Host Vehicle Drivers
 Diagram   Definition

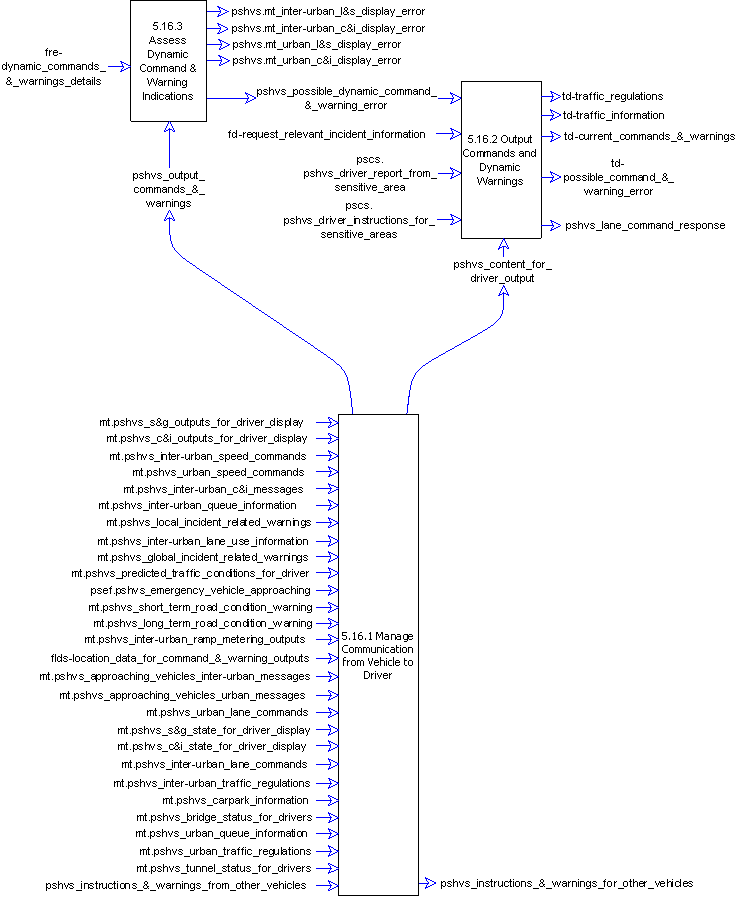

DFD 5.16 Provide Outputs to Host Vehicle Drivers

DFD 5.16 Provide Outputs to Host Vehicle Drivers

This is a DFD diagram which provides a description of the function in the ITS environment

Overview

This High-level Function shall provide facilities that enable outputs of messages, warnings and other information to be provided to the Driver of the Host Vehicle.  It shall display these messages in a pre-determined priority so that those with the highest priority are easily seen by the Driver and take precedence over those of lower priorities.  The Function shall also compare the content of the messages, warnings and other information with what the Driver can see being displayed by equipment outside of the Vehicle, and report any differences.
