DFD 7.5 Manage Rules and Users' Registrations

Overview

This High-level Function shall be charged with the upkeep of the Rules and Users' Registration stores.  It shall update their content with new elements issued by the law enforcement agencies.

Diagrams

The Diagram(s) is(are) the Diagram(s) where you can find the function
The first diagram, if exists, is a DFD diagram which provides the context of the function The second Diagram, if exists, is a Functional Tree which provides a hierarchical description of the function into subfunctions	DFD 7. Provide Support for Law Enforcement Functional Tree of Area 7

Parent

• 7. Provide Support for Law Enforcement

Component lower level functions

7.5.1 Manage Rules

7.5.2 Manage Users' Registration

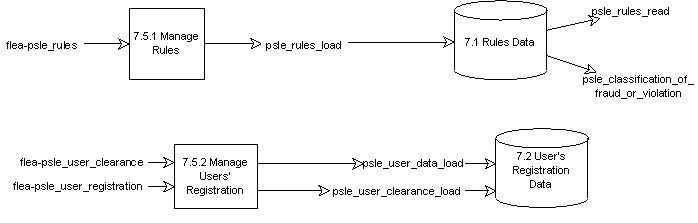

These two Functions maintain their Data Stores. They each have two Data Flows, one to receive data for the Store and the other to load data into the Store. The Functions and Data Flows are contained in the DFD for Function 7.5 - DFD 7.5.

Input logical dataflows

flea-psle_rules

flea-psle_user_clearance

flea-psle_user_registration

Output logical dataflows

psle_rules_load

psle_user_clearance_load

psle_user_data_load

User needs
