High Level Function 7.1 Detect Fraud or Violation
 Diagram   Definition
DFD 7.1 Detect Fraud

DFD 7.1 Detect Fraud

This is a DFD diagram which provides a description of the function in the ITS environment

Overview

This High-level Function shall perform the detection of specific types of fraud not carried out by the other Functions, such as weight in motion.
It shall measure the parameters to be controlled, if necessary ask for the identification of the user, get the authorised span of values for this parameter, compare it with the measure, and if a discrepancy is detected declare the fraud.

Diagrams

The Diagram(s) is(are) the Diagram(s) where you can find the function
  • The first diagram, if exists, is a DFD diagram which provides the context of the function
  • The second Diagram, if exists, is a Functional Tree which provides a hierarchical description of the function into subfunctions
  • DFD 7. Provide Support for Law Enforcement
  • Functional Tree of Area 7
    		•

    Parent

    Component lower level functions

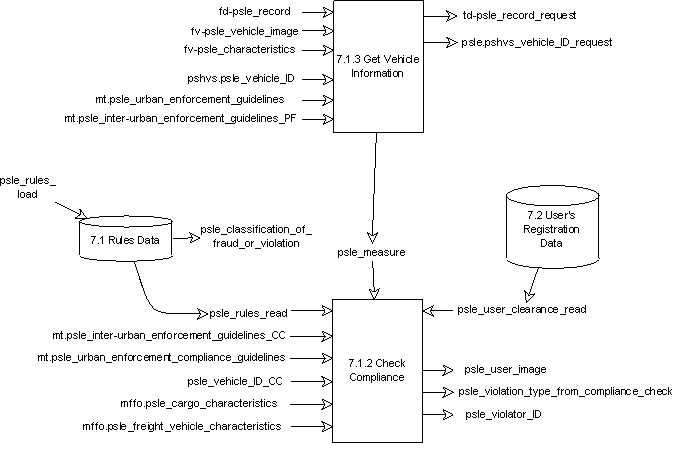

    These two Functions collect vehicle identities and check to see if a violation has occurred. The two Functions are linked by a single Data Flow and also have single Data Flows that enable them to read data from Stores. Several Data Flows are provided for the exchange of data with other Areas. The Functions and Data Flows are contained in the DFD for Function 7.1 - DFD 7.1.
