DFD 1.4 Manage Operators' Revenue

Overview

This High-level Function shall credit the account of the different Operators according to the transactions that have been made.  It shall apportion their revenue according to established rules.  The Function shall also enable Operators and Service Providers to have a clear view of the transactions that have been performed that are relevant to them.

Diagrams

The Diagram(s) is(are) the Diagram(s) where you can find the function
The first diagram, if exists, is a DFD diagram which provides the context of the function The second Diagram, if exists, is a Functional Tree which provides a hierarchical description of the function into subfunctions	DFD 1 Provide Electronic Payment Facilities Functional Tree of Area 1

Parent

• 1. Provide Electronic Payment Facilities

Component lower level functions

1.4.1 Distribute Fees Revenue

1.4.2 Credit Operator's Account

1.4.3 Inform Operators on Transactions

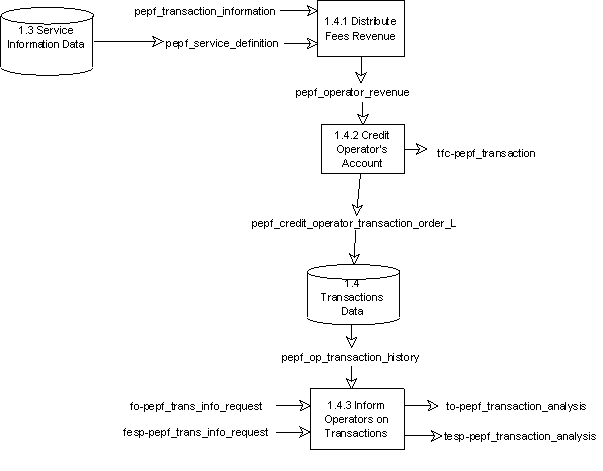

The Functions receive information about the payment that have been made and distributes the payments, informing the Operator of what has happened. Radiating from these Functions are a few Data Flows, one of which enables two Functions to exchange data with each other. The remainder enable the Functions to exchange data with other parts of the Provide Electronic Payment Facilities Area and with the terminators. The Functions and Data Flows are contained in the DFD for Function 1.4 - DFD 1.4.

Input logical dataflows

fesp-pepf_trans_info_request

fo-pepf_trans_info_request

pepf_op_transaction_history

pepf_transaction_information

Output logical dataflows

tesp-pepf_transaction_analysis

tfc-pepf_transaction

to-pepf_transaction_analysis
