High Level Function 4.3 Provide PT Management
 Diagram   Definition
DFD 4.3 Provide PT Management

DFD 4.3 Provide PT Management

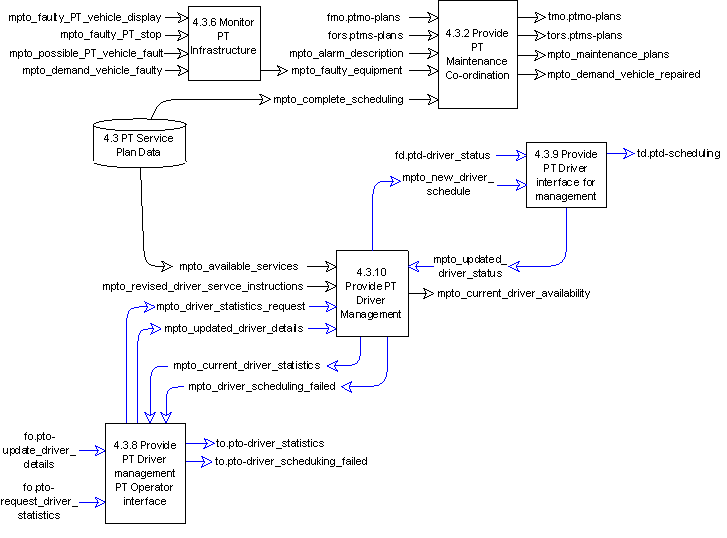

This is a DFD diagram which provides a description of the function in the ITS environment

Overview

This High-level Function shall provide operation management functionality by managing drivers, crew and vehicles. It shall cover the provision of on-demand transport services to individual travellers and car sharing services. The Function shall continuously monitor the status of the infrastructure and vehicles and then deal with routine and non-routine maintenance.  The Function shall consist of the following lower level Functions:

Diagrams

The Diagram(s) is(are) the Diagram(s) where you can find the function
  • The first diagram, if exists, is a DFD diagram which provides the context of the function
  • The second Diagram, if exists, is a Functional Tree which provides a hierarchical description of the function into subfunctions
  • DFD 4 Manage Public Transport Operations
  • Functional Tree of Area 4
    		•

    Parent

    Component lower level functions

    The Functions use information from the Stores of current (real-time) and historic vehicle data, plus schedule details to produce vehicle sharing plans, driver work schedules and vehicle maintenance plans. These Stores are provided with data by Functions responsible for monitoring the Public Transport vehicles and preparing schedules - see previous sections 6.5.3 and 6.5.4 respectively.

    Between each of these Functions there are some Data Flows. A minority of these Data Flows enable the Functions to exchange data with each other. Most of the Data Flows enable the Functions to exchange data with other parts of the Manage Public Transport Operations Area, with other Areas and with the terminators. The Functions and Data Flows are contained in the DFD for Function 4.3 - DFD 4.3.
