High Level Function 2.1 Manage Emergencies
 Diagram   Definition
DFD 2.1 Manage Emergencies

DFD 2.1 Manage Emergencies

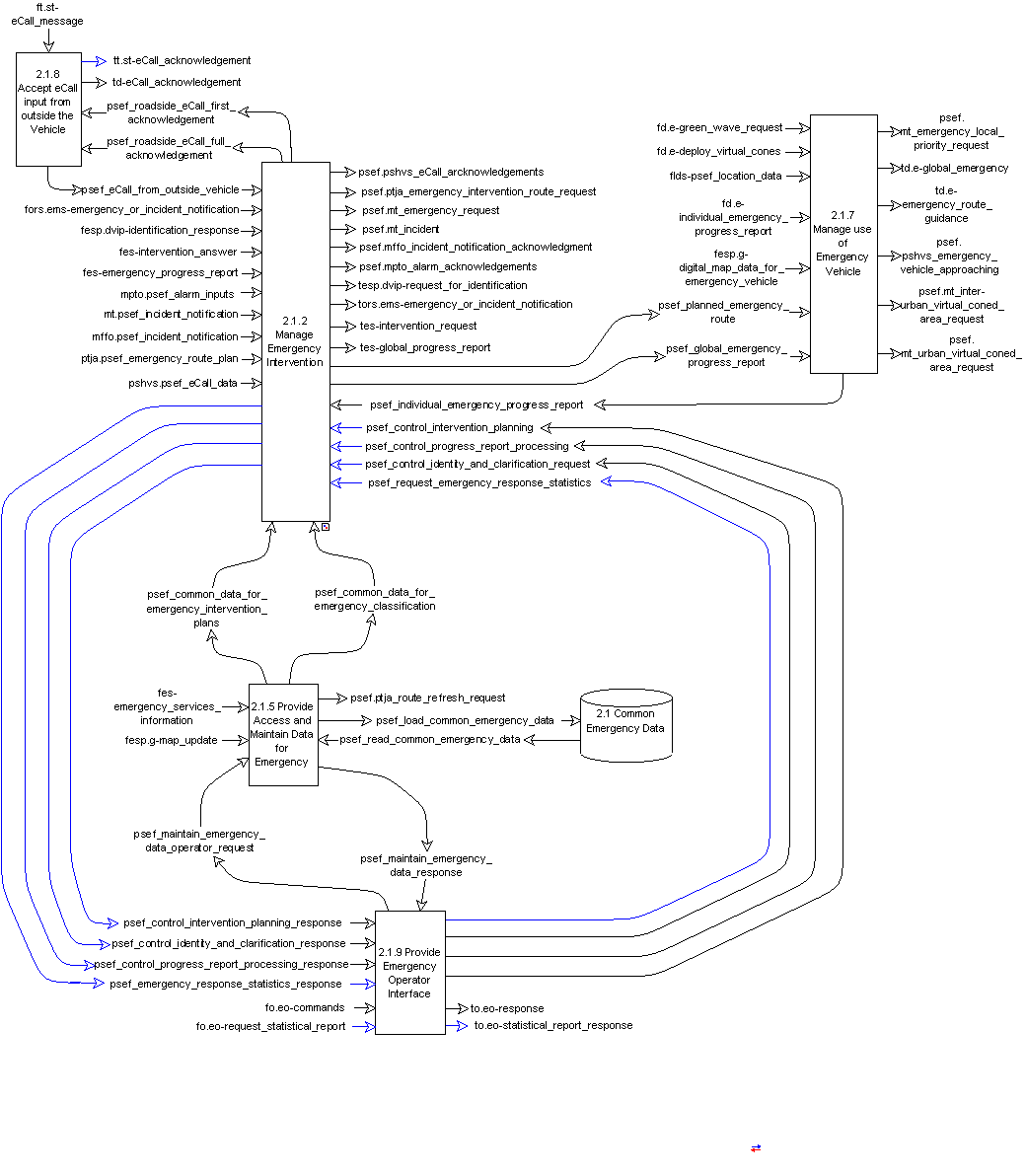

This is a DFD diagram which provides a description of the function in the ITS environment

Overview

This High-level Function shall include all functionality related to incident and emergency processing in order to assist  Emergency Services and to minimise their response time.  It shall also include alarm processing of  public traveller assault.

Diagrams

The Diagram(s) is(are) the Diagram(s) where you can find the function
  • The first diagram, if exists, is a DFD diagram which provides the context of the function
  • The second Diagram, if exists, is a Functional Tree which provides a hierarchical description of the function into subfunctions
  • DFD 2 Provide Safety and Emergency Facilities
  • Functional Tree of Area 2
    		•

    Parent

    Component lower level functions

    The Functions gather data about the emergencies as and when they occur, and manage the response of the Emergency Services. The data may come directly from vehicles, the roadside, functionality in other Areas, or from other Systems.

    Radiating from these Functions are a large number of Data Flows. A minority of these enable the Functions to exchange data with each other. The vast majority enable the Functions to exchange data with other Areas and with the terminators. The Functions and Data Flows are contained in the DFD for Function 2.1 - DFD 2.1.
